Detail

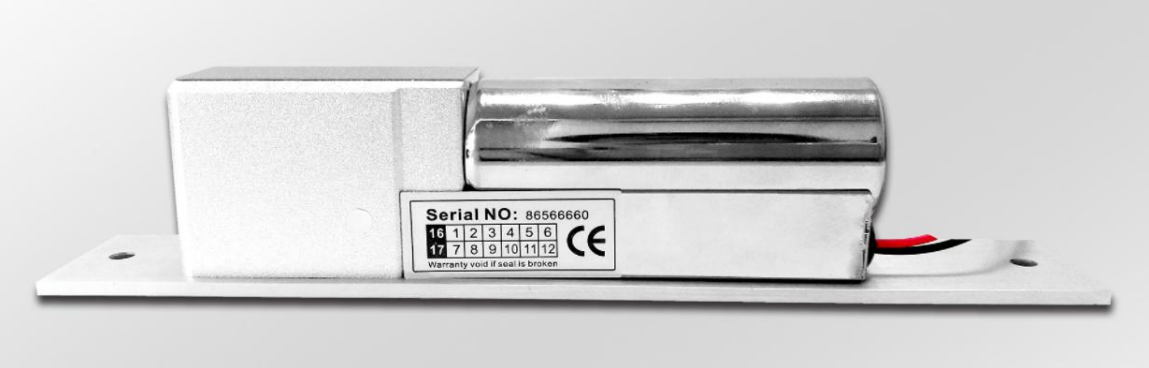

Electric Bolt lock with the signal output
Model: VI-802
Suitable for Glass door, wooden door, fireproof door, sliding door and metal door;
Can fixed with single door magnetic lock;
350lbs is the holding force;
Aluminum is the main material.
Product Parameter
| Lock Size | 205Lx35Wx40H(mm) |
| Strike Size | 90Lx25Wx2H(mm) |
| Input Voltage | DC12V±10% |
| Start Current | 950mA |
| Working Current | 110mA |
| Door Type Applicable | Wooden door , Glass door ,Metal door , Fireproof door |
| Time Delay | 0,3,6,9sec |
| Signal output | YES |
| Security Type | Locked when energized |
| Weight | 0.72KG |
