Product Parameters:

User capacity	100.000	Event relay output	1
Logs capacity	100.000	TCP/IP Interface:	RJ45(WEB Server)
Processor	32-bit RAM	Power Requirement	DC12V,1A
Management door	2 Door	Power Consumption (Exclude external device)	550mA
WG Reader in	4	Power Consumption (Exclude external device)	550mA
Exit Button Connection	2	Reader Communication Mode	Wiegand 26/34 bit... (Support customizable)
EM Lock Connection	2	Reader Communication Mode	Wiegand 26/34 bit... (Support customizable)
Sensor Connection	2	Size	172.5115.527.5mm
Fire alarm input	1	Weight	503g

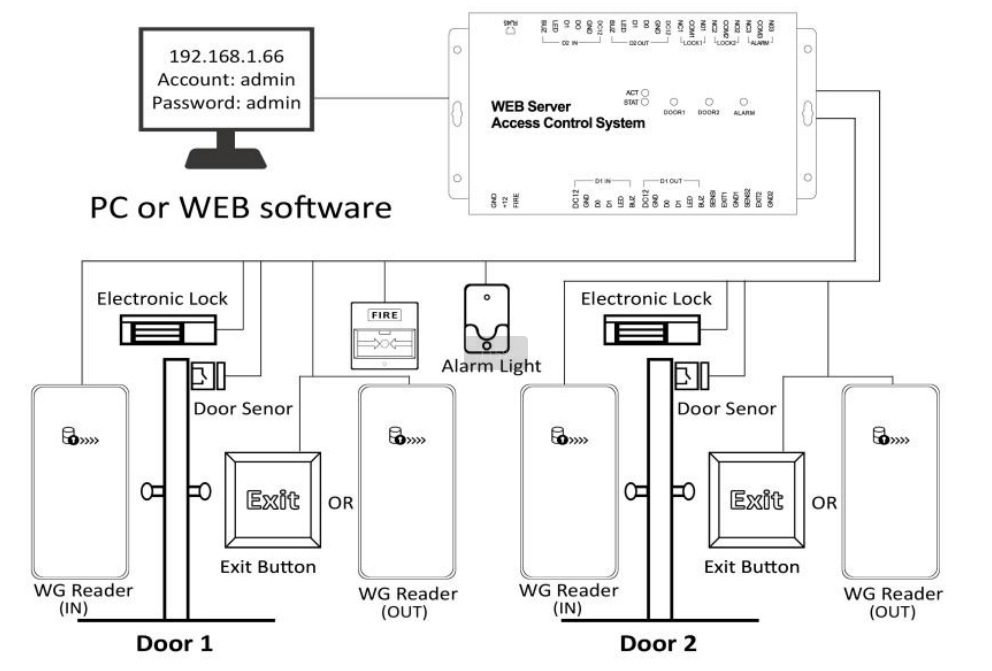

Installation Diagram
