Detail
1 Door 2 ways WEB Server Access Controller
Product Parameters:
| User capacity | 100.000 | Event relay output | 1 |
| Logs capacity | 100.000 | TCP/IP Interface: | RJ45(WEB Server) |
| Processor | 32-bit RAM | Power Requirement | DC12V,1A |
| Management door | 1 Door | Power Consumption (Exclude external device) | 500mA |
| WG Reader in | 2 | ||
| Exit Button Connection | 1 | Reader Communication Mode | Wiegand 26/34 bit... (Support customizable) |
| EM Lock Connection | 1 | ||
| Sensor Connection | 1 | Size | 172.5*115.5*27.5mm |
| Fire alarm input | 1 | Weight | 460g |

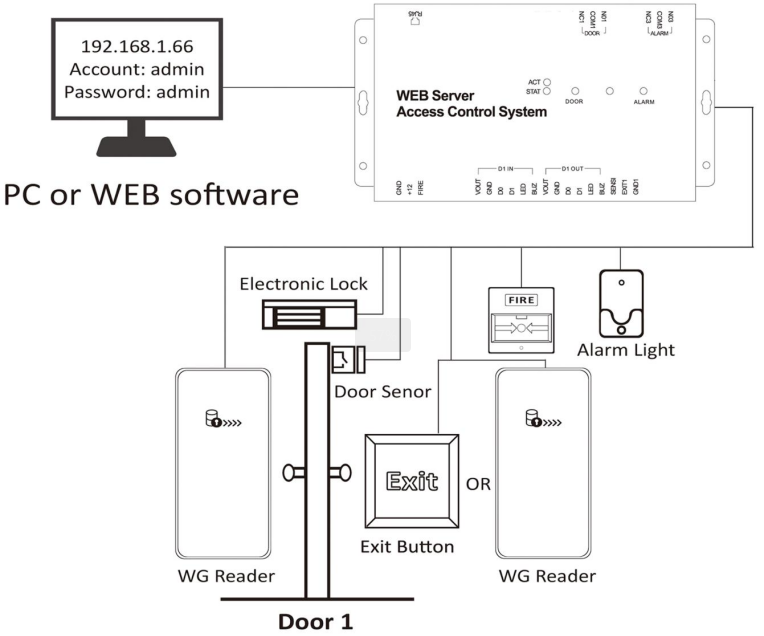

Installation Diagram
Access control board provides secure management of entry points, ensuring authorized access and reliable building security control.
