Product Parameters:

Door Capacity	20.000	TCP/IP Interface	Support
Wiegand Interface	4	Power Requirement	DC 12V
Exit Button Connection	4	Accessibility To Wiegand Reader's Light and Buzzer	Support
EM Lock Connection	4	Max. Range For Wiegand Reader	80 Meters
Sensor Connection	4	Reader Communication Mode	Wiegand 26～66 bit
Fire Alarm Connection	Support	Size	20011427mm
Power Box LED Connection	Support	Weight	250g

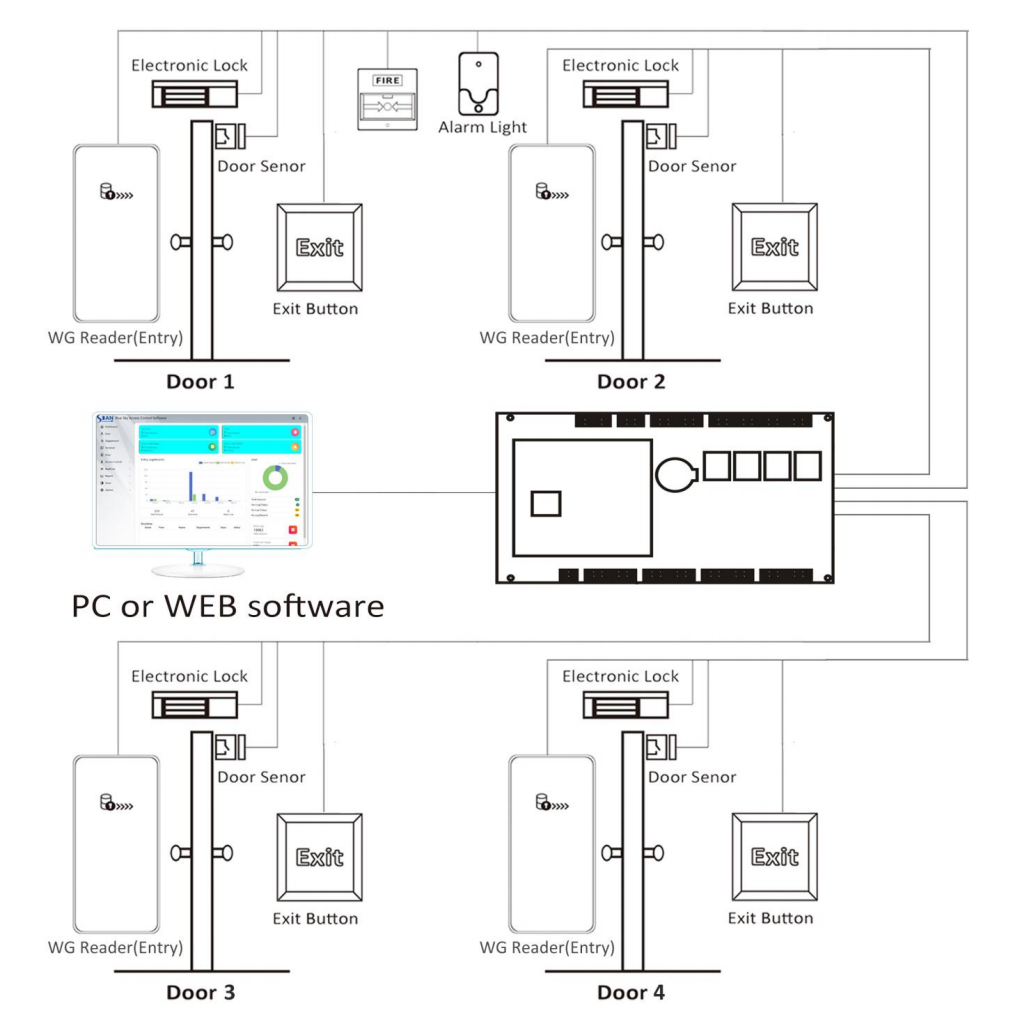

Installation Diagram

Recommend

Cloud software 1 Door Web Based Cloud Access Control Panel （FD-ACN1B）

2 Door Web Based Cloud Access Control Panel （FD-ACN2B）

One Door TCP/IP Cloud WEB access control controller （FD-ACN1P）

Two Door TCP/IP Cloud WEB access control controller （FD-ACN2P）
