20 FLOORS Web Elevator Multifloors Controller
Product Parameters:
| User capacity | 50.000 |
| Logs capacity | 100.000 |
| Processor | 32-bit RAM |
| Floor contro | 20-80 Floors (Through RS485 extend 4pcs elevator controller to achieve up to 80 floors.) |
| WG Reader | 1 |
| RS485 | 1 |
| TCP/IP Interface: | RJ45(WEB Server) |
| Power Requirement | DC12V,1A |
| RS485 | 1200 Meters |
| Operation Temperature | -20～65℃ |
| Operation Humidity | 10%～90%,RH |
| Max.Range For Wiegand Reader | 80 Meters |
| Reader Communication Mode | Wiegand 26/34 bit. (Support customizable) |
| Size | 224*125*30mm |
| Weight | 800g |

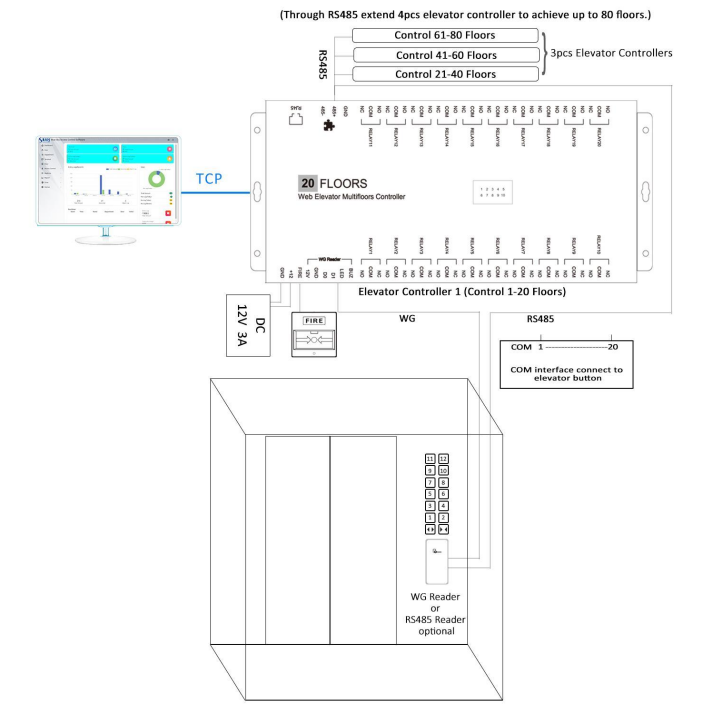

Installation Diagram:
